YAMAHA SMT Feeder - AREED Product Details

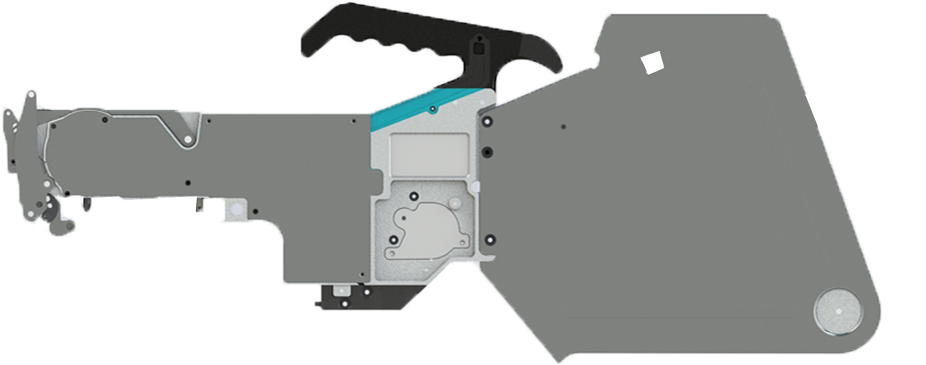

YAMAHA SMT Feeder
Applicable Machine:
Compatible with YAMAHA SMT machine series
Product Type:
SMT Feeder
Brand:
YAMAHA
Model:
ARD-YV-08 / 12 / 16 / 24 / 32（mm）
Product Description
Stepper motors replace the cylinder drive of traditional feeders, and precision brass gears replace mechanical linkage transmission.\nThrough power pickup contacts connected to a 24V safety supply, the masking sensor converts the placement machine's mechanical signal into\nelectrical signals to control the feeder.
Product Features

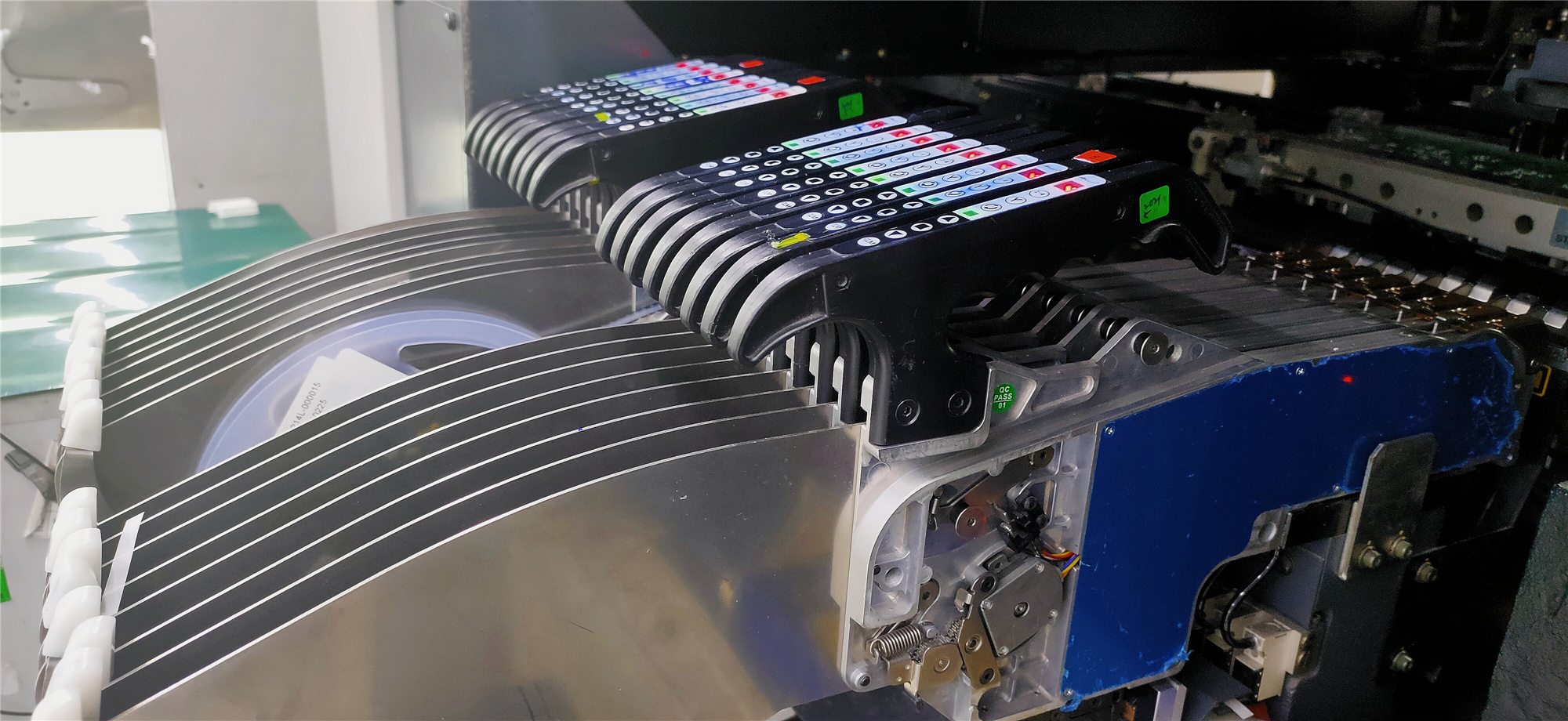

Precision Advantages
Stepper motors replace the cylinder drive of traditional feeders, and precision brass gears replace mechanical linkage transmission. Through power pickup contacts connected to a 24V safety supply, the masking sensor converts the placement machine's mechanical signal into electrical signals to control the feeder. Wide range of electronic material types. 8mm supports both paper and tape packaging, with one-click switching of 1mm/2mm/4mm pitches. One AREED 8mm electric feeder replaces three original 8mm feeders.

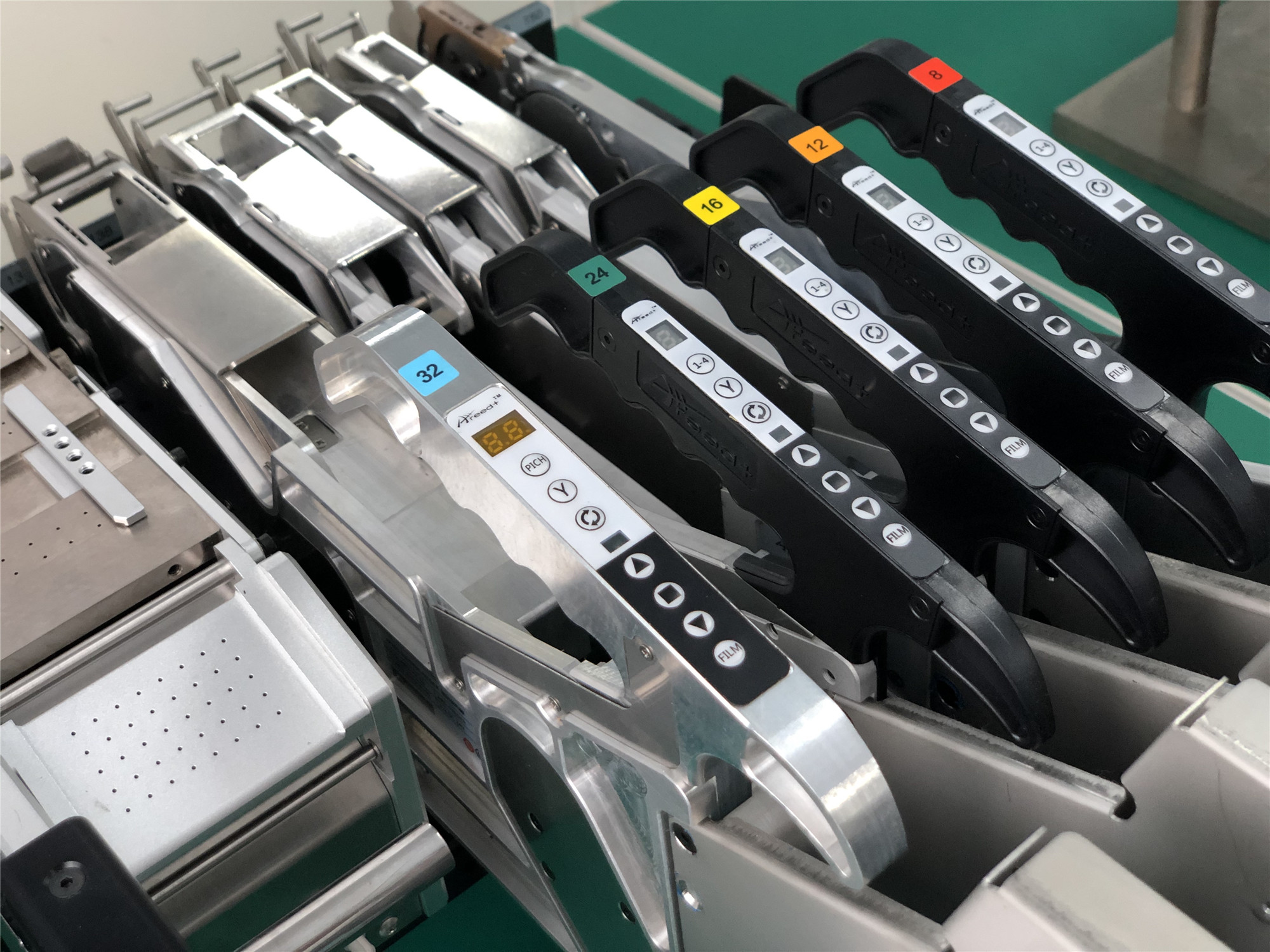

Upgrade Advantages
Feeding speed: Omron grating sensors rapidly sense machine signals; the self-developed control board algorithm is more scientific and reasonable; stepper motors with speed-up gears make FEEDER feeding speed exceed the placement machine's pickup limit.
Line change speed: tape peeling from directly above with a built-in film storage chamber; batch line changes need no feeder disassembly; automatic chamber-open alert when full, truly enabling non-stop material change, improving line change efficiency by more than three times.
Compatible with all YAMAHA mechanical FEEDER platform machines on the market. The conductive bracket is easy to install without altering original wiring, simple, safe and effective. It does not interfere with original mechanical feeder positions and can be used interchangeably.
Line change speed: tape peeling from directly above with a built-in film storage chamber; batch line changes need no feeder disassembly; automatic chamber-open alert when full, truly enabling non-stop material change, improving line change efficiency by more than three times.
Compatible with all YAMAHA mechanical FEEDER platform machines on the market. The conductive bracket is easy to install without altering original wiring, simple, safe and effective. It does not interfere with original mechanical feeder positions and can be used interchangeably.
Product Parameters
| Item (ITEMS) | ARD-YV-08 / 12 / 16 / 24 / 32 |
|---|---|
| Model | ARD-YV-08 / ARD-YV-12 / ARD-YV-16 / ARD-YV-24/ ARD-YV-32 |
| Applicable Machine (SMT Machine) | YAMAHA YV series / YG series |
| Replaceable Feeder | FV CL FT FS Feeder |
| Main Material | Aluminum alloy |
| Positioning Method | Double-pin rail positioning, linkage locking |
| Electrical Interface | Single-pin contact interface |
| Voltage | DC24V |
| Current | 0.5A | 2.5A MAX. |
| Communication Mode | Pulse type |
| Driving Mode | Electric drive |
| Feeding Speed | 68ms/pcs at 4mm pitch |
| Feeding Precision | X-axis ±0.05mm, Y-axis ±0.05mm |
| Feeding Speed | 80000CPH |
| Film Recycling | Diagonal pull rewind mechanism |
| Applicable Packaging | 8/12/16/24/32/44/56MM standard SMT packaging |
| Applicable Materials | All materials using standard YMH packaging |
| Material Change Method | Full change and splice change |
| Operating Temperature | Temperature -20~65℃ |
| Working Humidity | Humidity 20~90%RH, no condensation |
| Storage Temperature | Temperature -40~85℃ |
| Storage Humidity | Humidity 10~95% |
| Drop Impact Test | / |
| Aging Test | 72 hours continuous operation without abnormality |
| Operation Record | Complete and consistent |
| Service Life | >=20K hrs.MIL-HDBK-217F(25℃) |
